SP26 SP Series Processor

£649.00

The SP26 is a fully featured 2-IN/6-OUT digital speaker management system.

Featuring 2 analog inputs and 6 analog outputs, each managed by a powerful DSP Engine. Each input channel provides PEQ, gain control, Dynamic Low boost, noise gate function, RMS compressor, internal White/Pink Noise Generator, and configurable delay. Each output offers up to 7 PEQ and crossover filters.

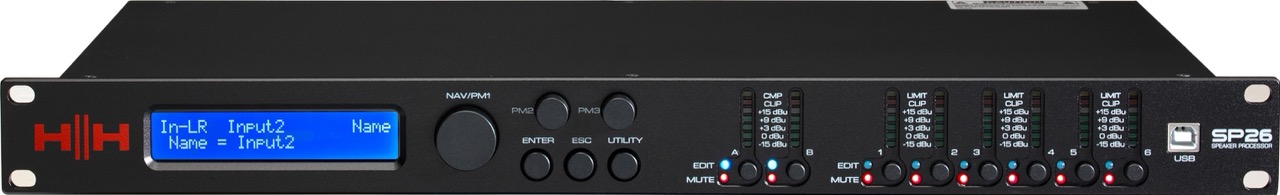

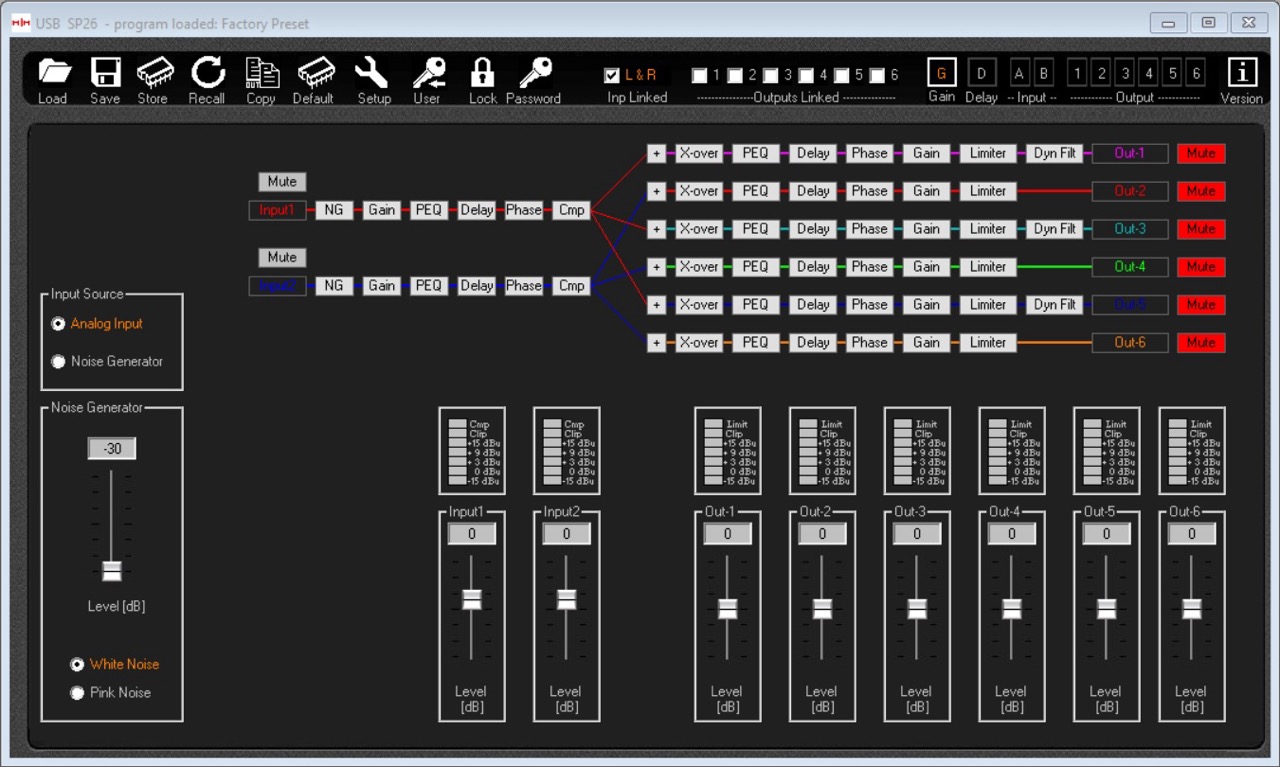

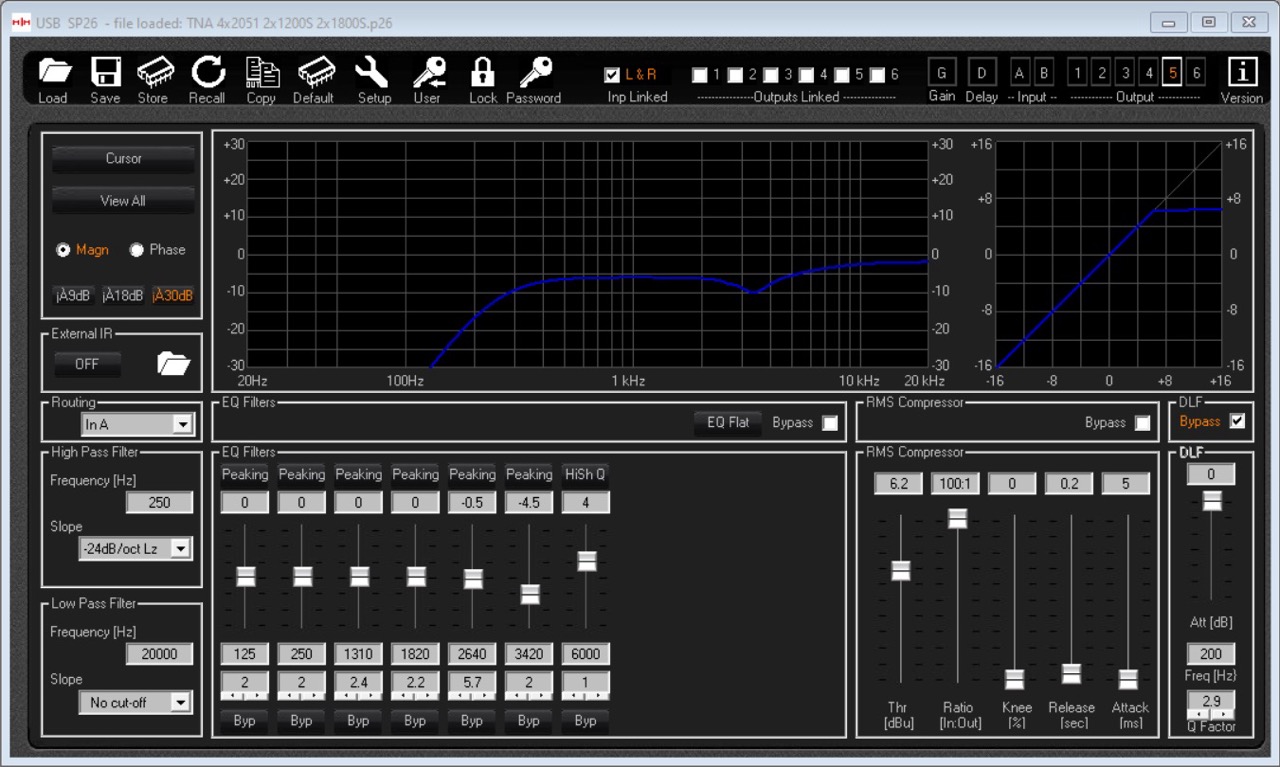

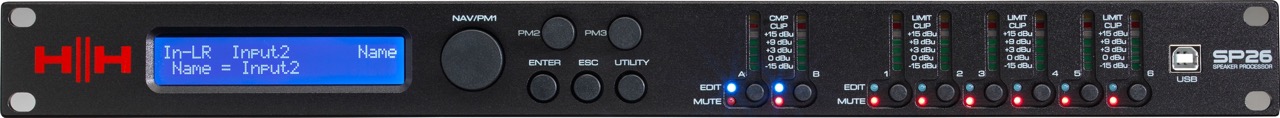

Easy setup is assured with intuitive front panel controls and an interactive LCD display for local setup, or a dedicated PC control interface for remote monitoring and configuration via USB or RS485.

The SP26 loudspeaker processor is the perfect counterpart to any HH speaker system, suitable in an array of applications, such as live sound, indoor/outdoor events, public address, theatrical performance, and touring. It also comes with expertly created audio pre-sets for use with the TNA line array system, for easy setup straight out of the box.

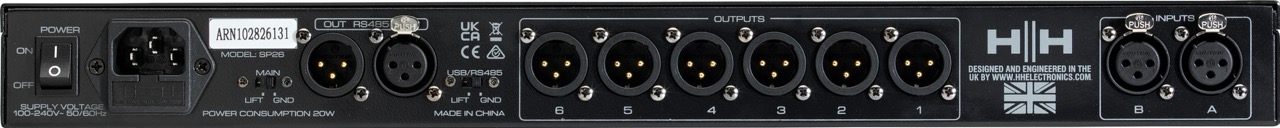

Inputs

Two Electronically Balanced XLR Inputs. RS485 XLR
Outputs

Six Electronically Balanced XLR Outputs. RS485 XLR
Frequency Response

20Hz-20kHz; -0.5dBy at 20Hz and 20kHz
S/N

>106dBA
THD+N

0.001% at 1kHz 0dBu
DSP

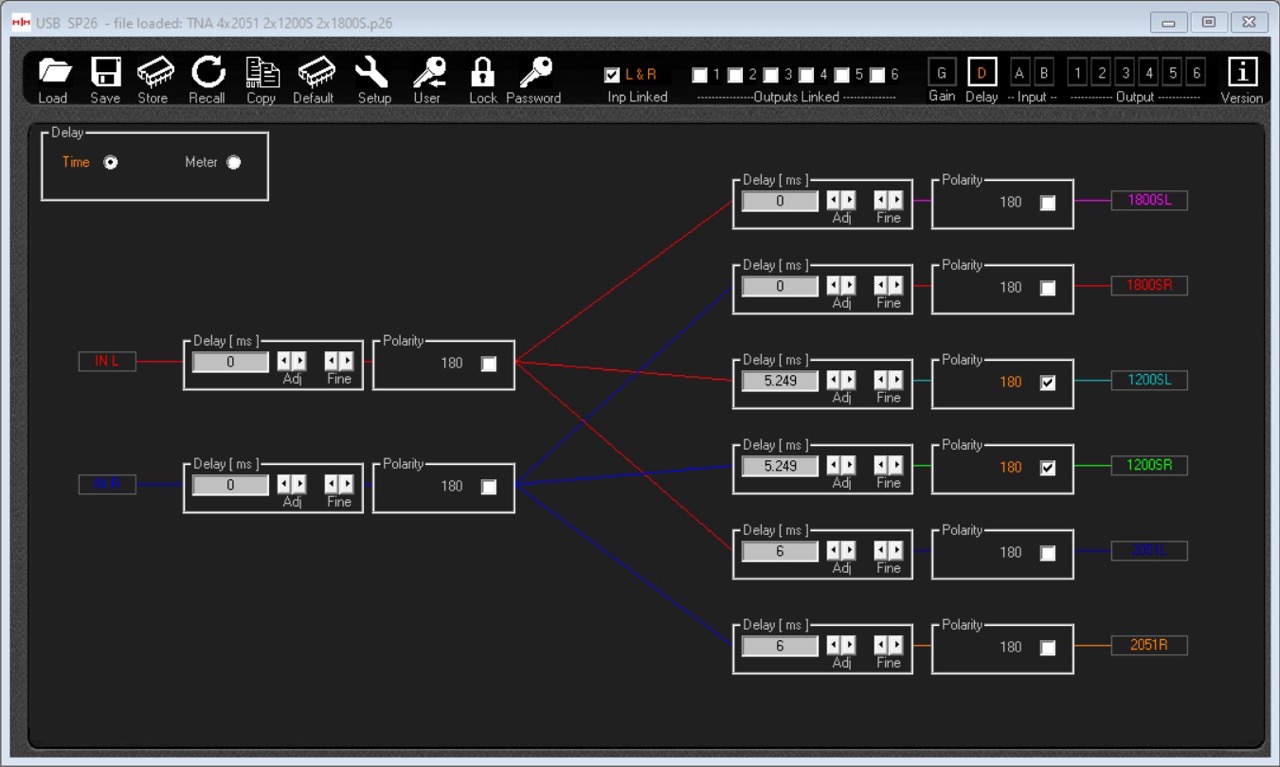

Max Delay, 900 ms 10.4us increment/decrement steps per input channel. 340 ms 10.4us increment/decrement steps per output channel
Dimensions

44 x 483 x 229mm, 1.7″ x 19″ x 9″
Weight

3.5Kg, 7.7 lbs
Carton Dimensions (Hwd)

9 x 53 x 30CM, 3.5″ x 20.9″ x 11.8″ , 0.014 M3
Packed Weight

4.5Kg, 9.9 lbs
System Type

Loudspeaker Management System
Power Consumption

30W
Power Supply

Universal voltage 100V-240V~ 50/60Hz
Other Controls

Comprehensive front panel controls with quick mute functionality. Ground lift switches for signal and RS485/USB.
USB interface.
AD-DA Converters

24bit, 96kHz (48kHz for pre-October 2023 models)
Presets

48 user presets
Filter Type

Parametric EQ. 11 filters per input,7 filters per output. Bell, Shelving
Power Connector

Removeable IEC Power Cord C14
Filter Type

Crossover. Butterworth 6/12/18/24/36/48 dB per octave. Bessel 12/24 dB per octave. Linkwitz-Riley 12/24/36/48 dB per octave
