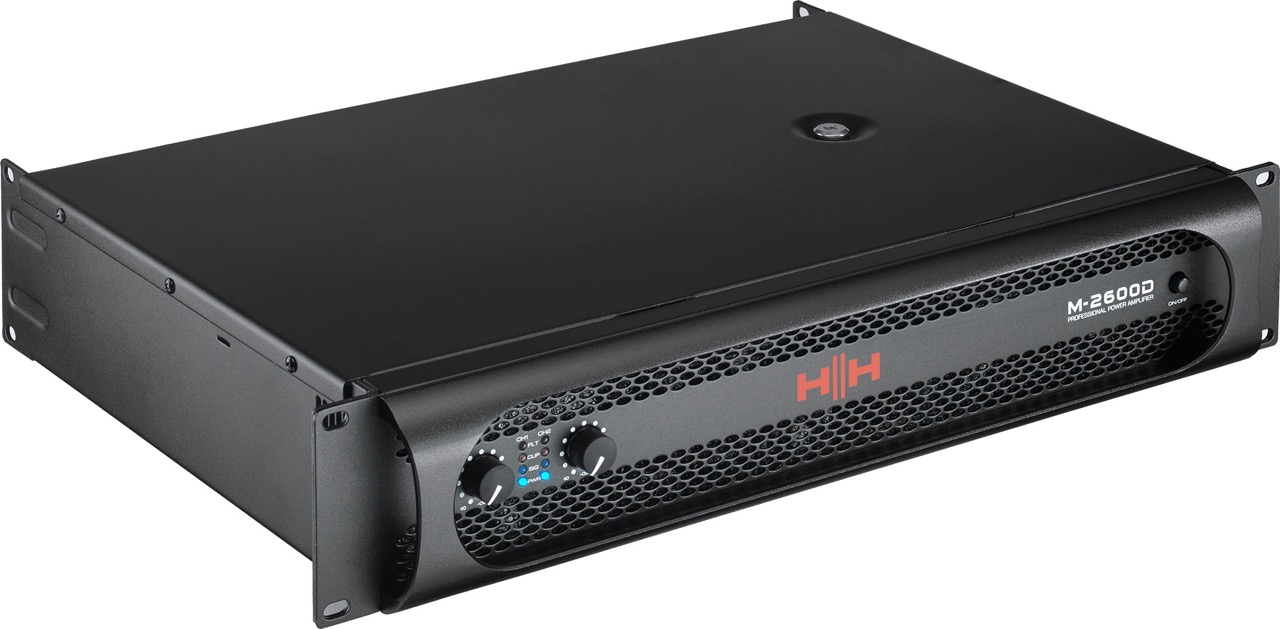

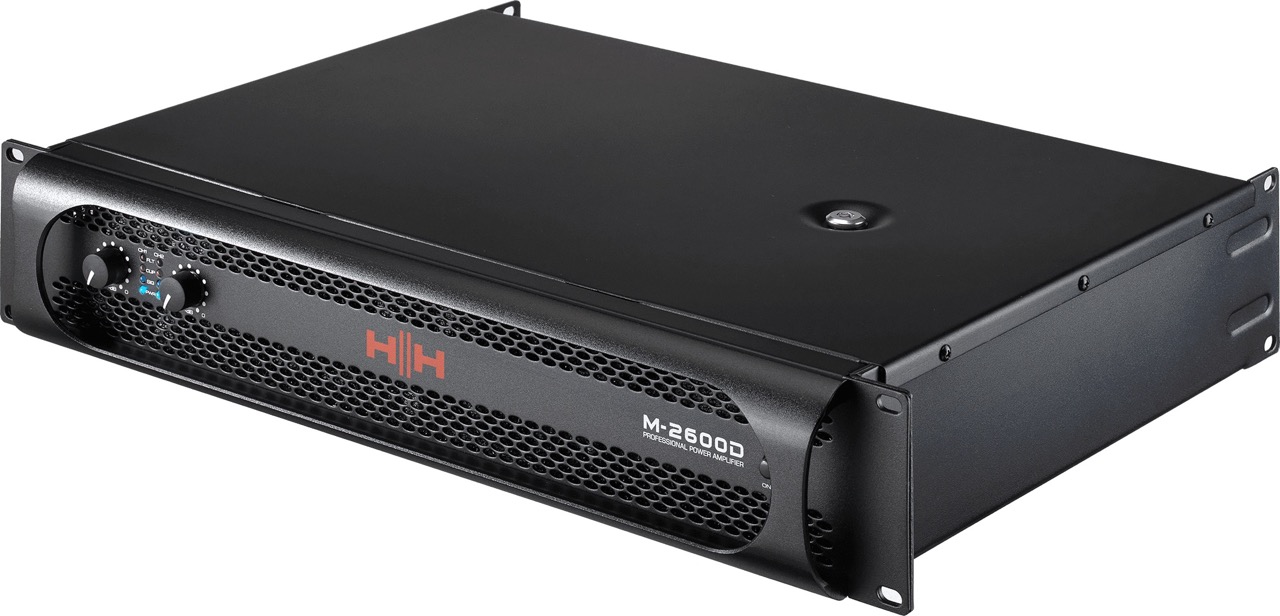

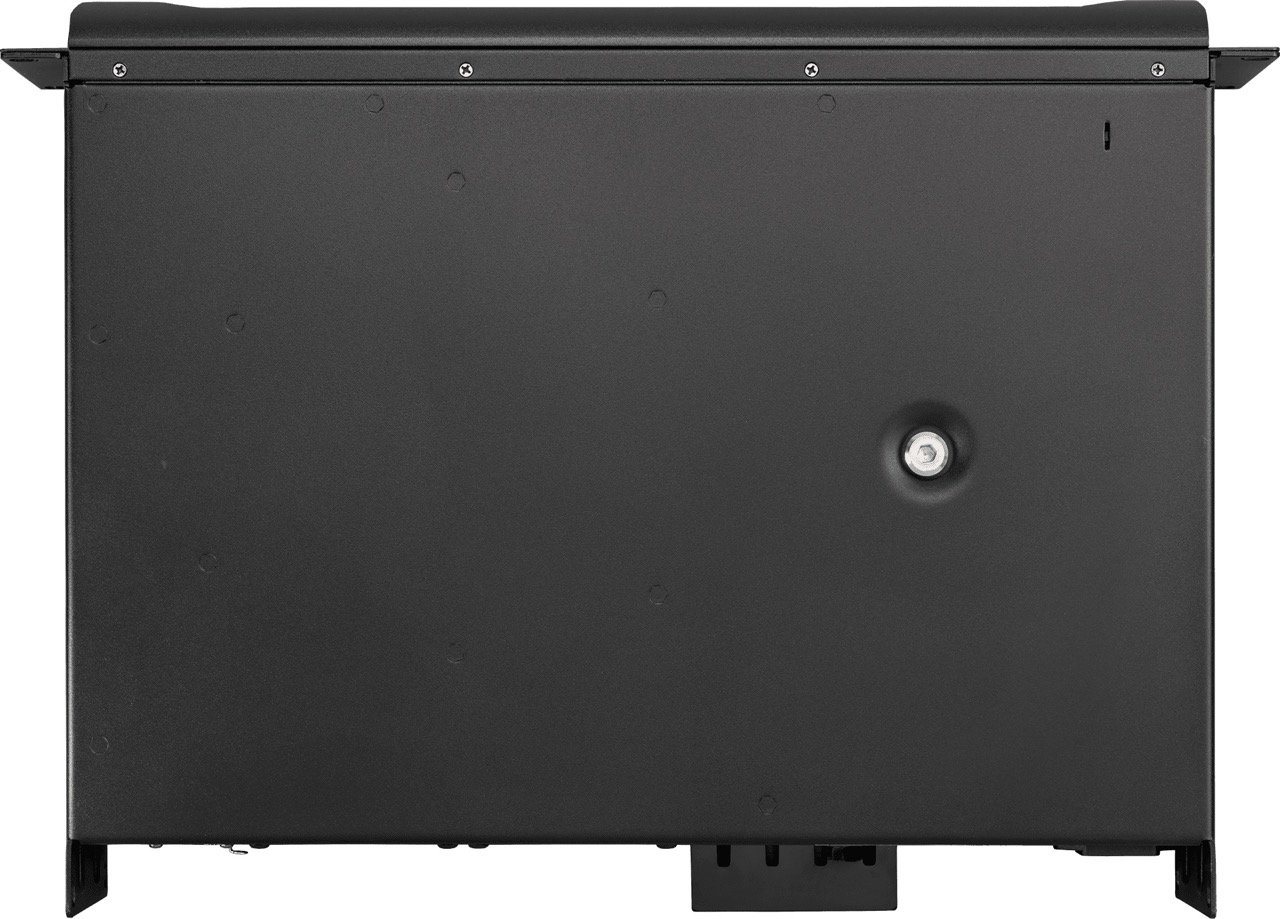

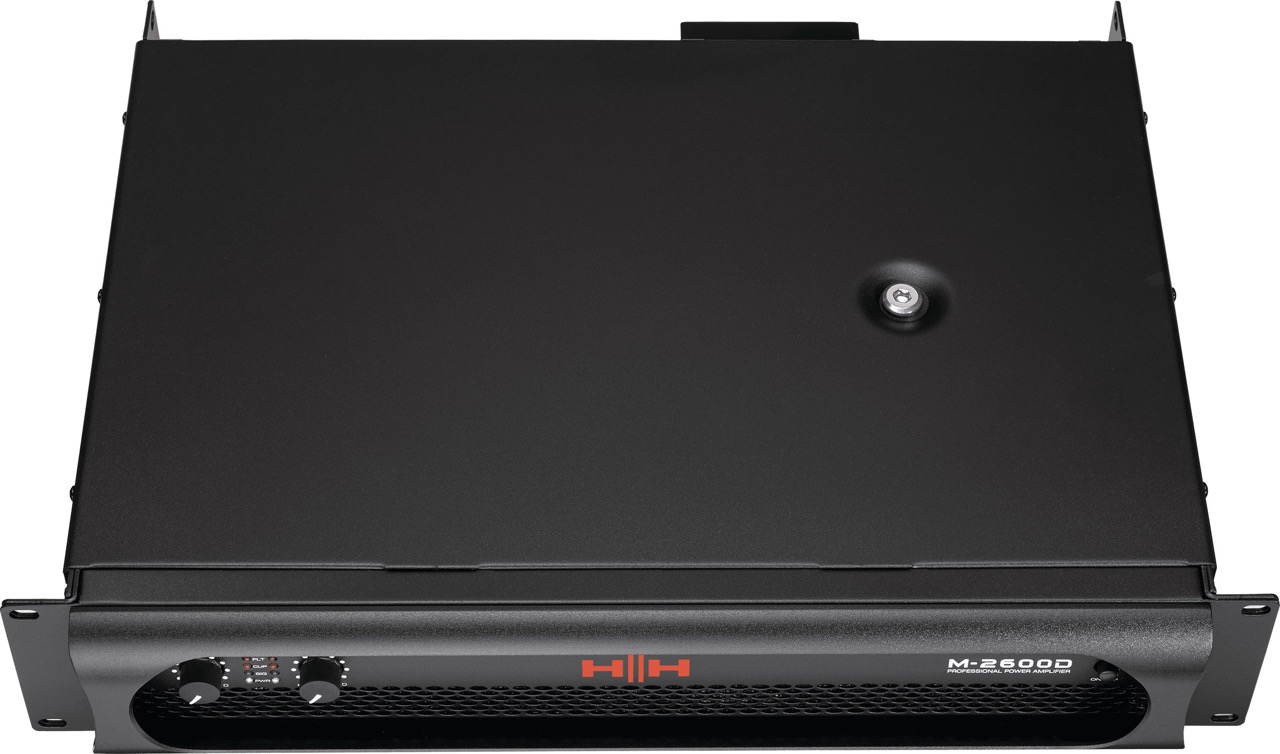

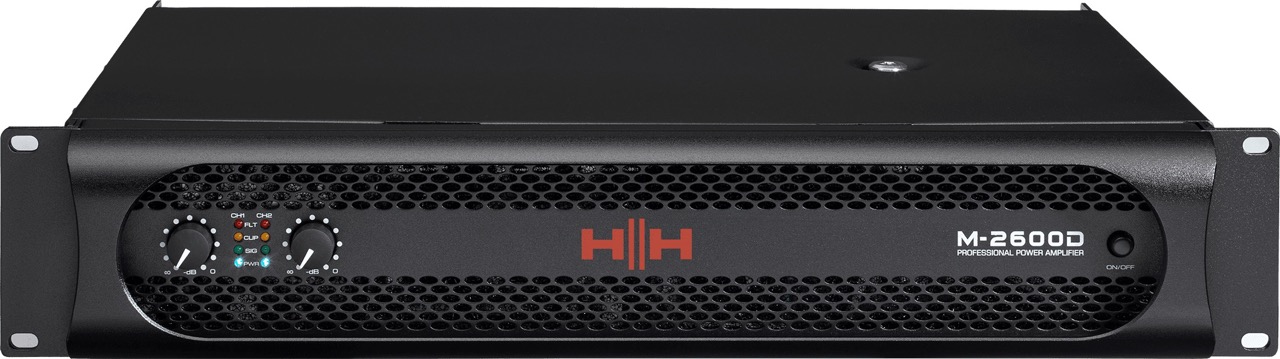

M-2600D M-Series Power Amplifier

HH M-Series power amplifiers are high power, 2U rack amplifers designed to provide maximum performance for demanding applications . Three models are available all featuring heavy duty low noise toroidal power supplies and rugged construction. Suitable for anywhere you need high fidelity, high power amplification

Featuring high quality balanced XLR inputs, user selectable input sensitivity , SpeakON(®) Connectors, binding post outputs, status indicators, Twin volume controls and comprehensive protection circuits.

HH has over five decades of experience designing quality power amplifiers, and indeed was one of the pioneers in this area.

• Amplifier Type
  Class H High Performance Professional linear design
• Controls
  Volume Controls (per channel), Power switch, Input Sensitivity Switch, Bridge/Routing Mode Switch
• Cooling
  Forced air, variable speed fan, air flow front to back
• Damping Factor
  >200
• Dimensions
  88 x 482 x 297mm, 3.5 x 19 x 11.7″
• Features
  Soft start, comprehensive protection
• Input Impedance (Bal/Unbal)
  20KΩ/10KΩ
• Input Sensitivity
  0.775V/1.4V
• Inputs
  2x Balanced XLRs
• Output Power : 4 Ohm Stereo
  2x2600W
• Output Power : 8 Ohm Stereo
  2x1500W
• Output Power : 8 Ohm Bridge
  5150W

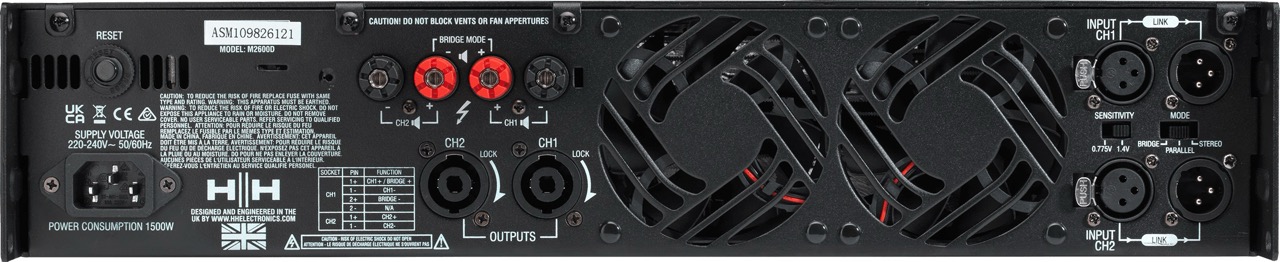

• Outputs
  2x locking SpeakON® connectors, 4x 4mm binding posts (with safety cover), 2x Balanced XLR link outs
• Packed Weight
  26.6Kg/pc, 58.6 lbs/pc
• Power Connector
  Removeable IEC Power Cord C14
• Protection
  Soft start, VHF, RF, short circuit, over load, clip limit, over heat
• S/N
  ≥100dB
• Slew Rate
  ≥20V/µS
• System Type
  2U Professional Power Amplifier
• THD+N
  ≤0.5% 20Hz-20kHz
• Voltage Gain (8Ω)
  37dB
• Weight
  24.2Kg/pc, 53.4 lbs/pc
• Frequency Response
  20Hz – 20KHz (+0, -1dB)
• Carton Dimensions (Hwd)
  160 x 580 x 540mm, 6.3 x 22.8 x 21.3″
