Description

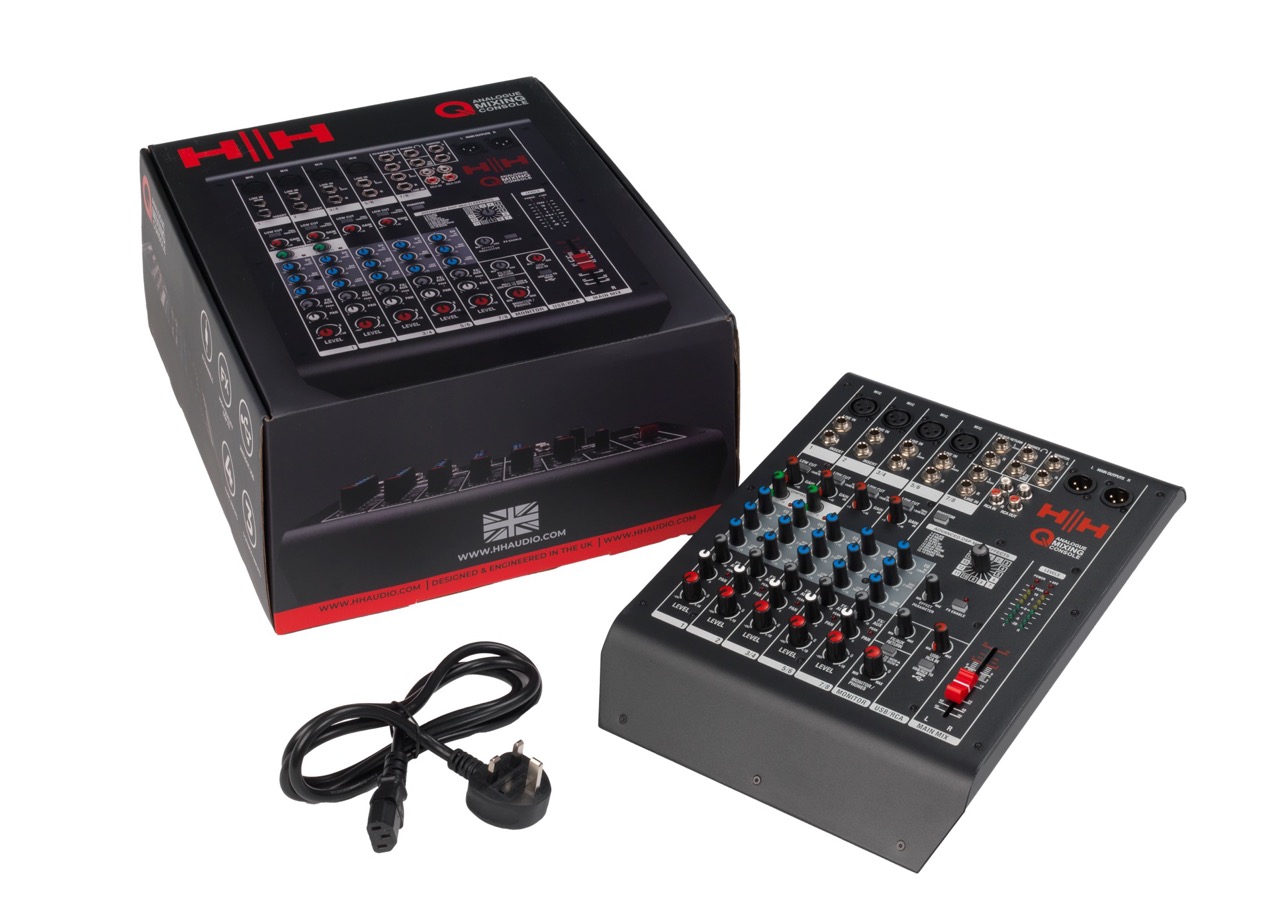

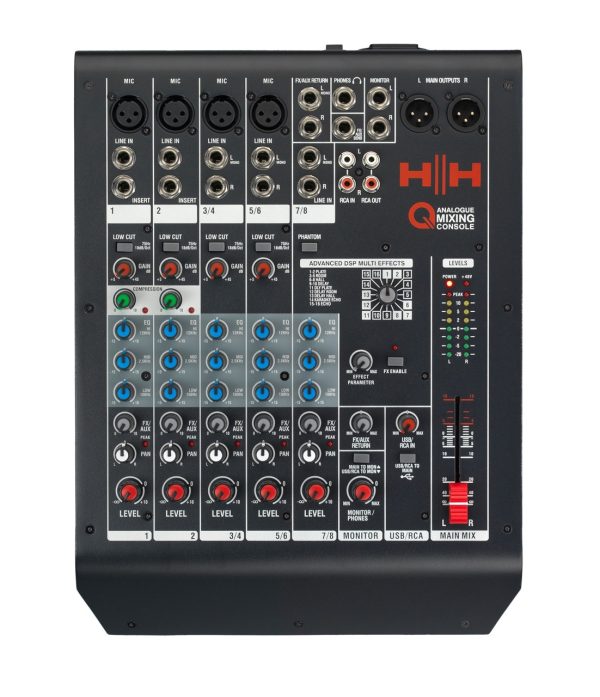

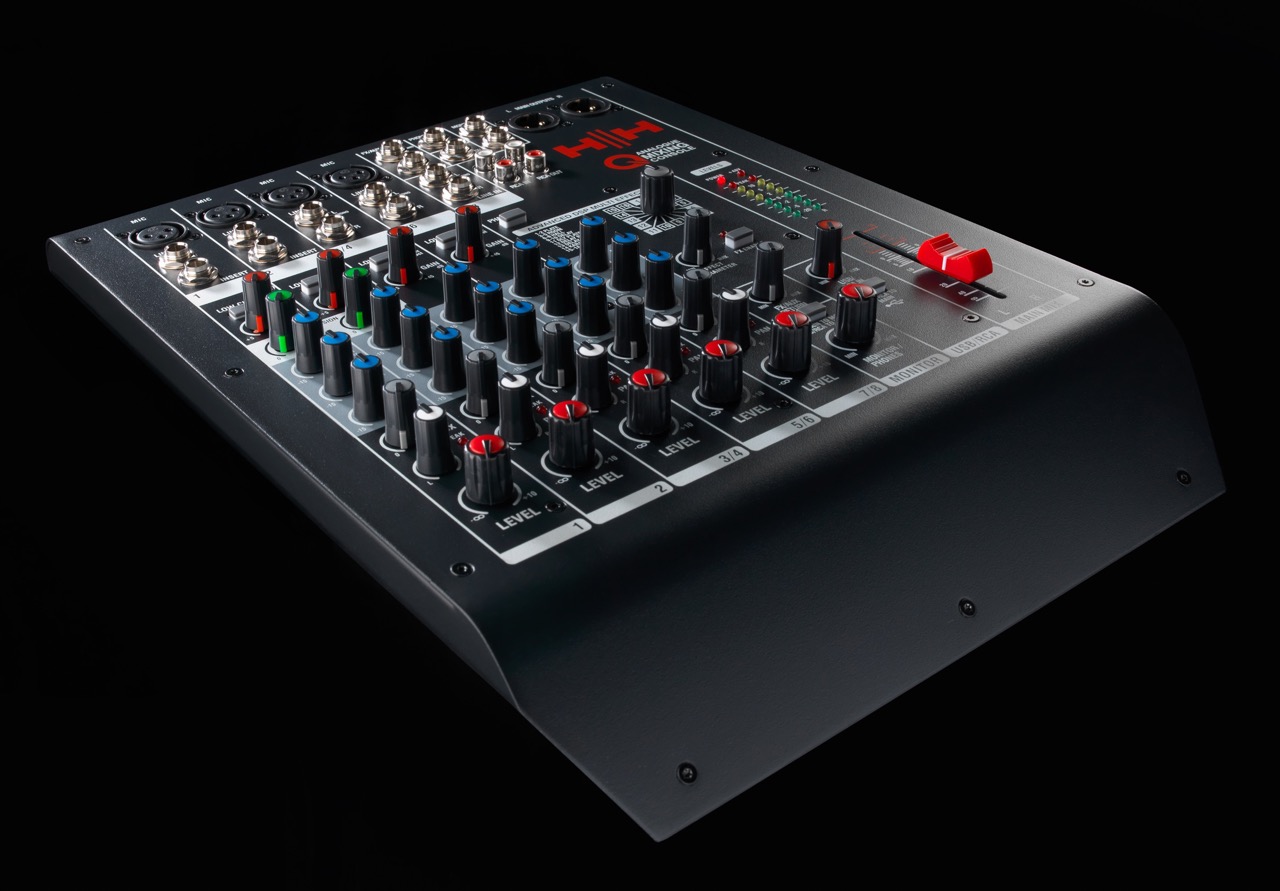

The Q8FX is an 8-channel analogue mixing console designed and engineered in the UK. The Q8FX houses 4 microphone inputs that utilise low-noise microphone preamps as well as a line input option and mono insert on channels 1 and 2. The Q8FX also features 3 stereo line input channels perfect for electric pianos, synthesizers, drum machines, stereo audio from an external media player, or any other line-level sources.
Channels 1 and 2 feature an easy-to-use single-knob compressor giving you control over the dynamic range of your input sources. A low cut at 75 Hz plus a 3-band EQ on each channel allows you to shape the tone of individual sound sources helping you to create a beautifully balanced mix. 16 high-quality DSP effects offer even more options for your audio productions with multiple reverbs, delays, and echoes to choose from. 2in/2out USB functionality makes the Q8FX the perfect tool for recording performances, podcasts, and music production.
All of this combined with comprehensive monitoring, an auxiliary send with a stereo return, RCA in and out, global phantom power, pan on each channel, and an 8-point LED meter for your main mix all housed in a robust chassis make the Q8FX a complete portable powerhouse for traveling musicians and engineers alike.
Features
- Mic Inputs – 4 x XLR CH1-6
- Line Inputs (Mono) – 2 x ¼” 6.3mm TRS CH1-2
- Line Inputs with Mic (Stereo) – 2 x Stereo ¼” 6.3mm TRS CH3-6
- Line Inputs (Stereo) – 1 x Stereo ¼” 6.3mm TRS CH7-8
- EQ – 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel
- Low Cut – 75Hz cut off @ 18dB/Octave (CH1-6)
- Compressor – 2:1 Ratio, 9dB Makeup Gain, -8dBu input threshold (max compression, CH1-2)
- Main Outputs – Balanced Stereo XLR
- Monitors – Stereo ¼” 6.3mm TRS sockets
- FX Send – Mono ¼” 6.3mm TRS
- Phones – Mono ¼” 6.3mm TRS
- RCA – Stereo Phono Sockets
- Effects – 16 Reverb and Delay effects with enable switch and parameter control.
- USB Audio – Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sample Rate: 48kHz
- AC Power – Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included)
Datasheet
For more product info see the full spec and downloads
