Description

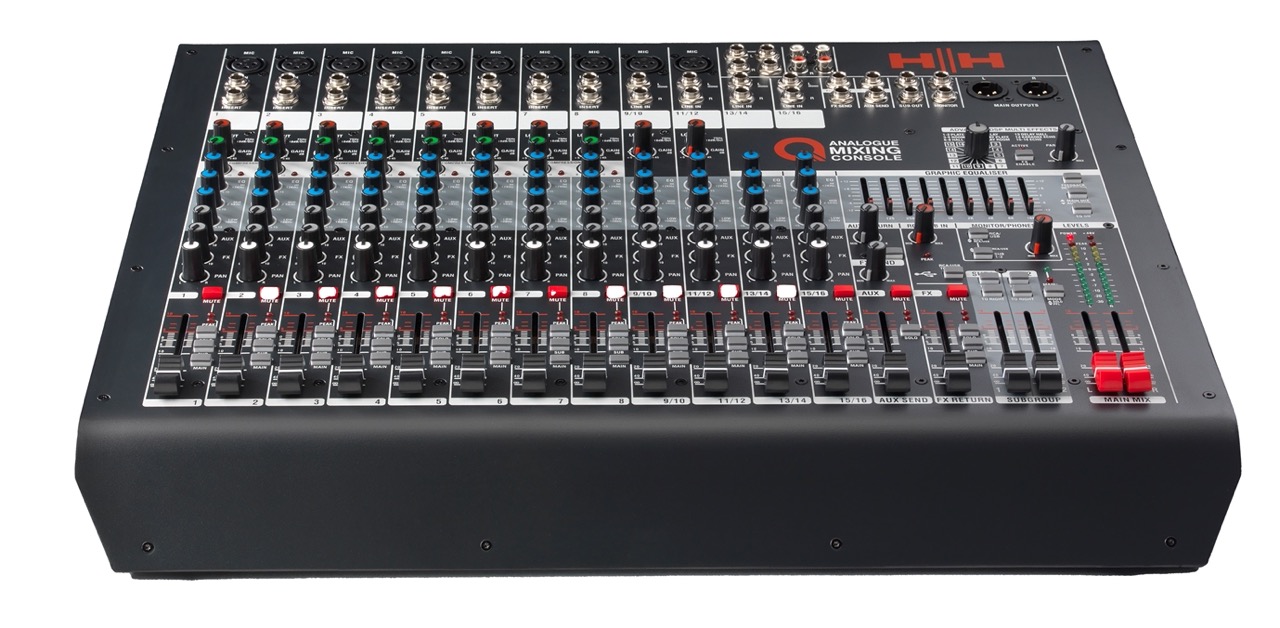

The Q16FX is a 16-channel analogue mixing console designed and engineered in the UK. The Q16FX consists of 16 input channels: 10 mono channels with microphone inputs utilising low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.
Channels 1 to 8 feature an easy-to-use single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.
16-high-quality DSP effects offer even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.
The Q16FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q16FX the perfect tool for recording performances, podcasts, and music production.
All of this combined with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q16FX a complete portable powerhouse for traveling musicians and engineers alike.
Features
- Mic Inputs – 10 x XLR CH1-12
- Line Inputs (Mono) – 8 x ¼” 6.3mm TRS CH1-8
- Line Inputs with Mic (Stereo) – 2 x Stereo ¼” 6.3mm TRS CH9-12
- Line Inputs (Stereo) – 2 x Stereo ¼” 6.3mm TRS CH13-16
- EQ – 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel
- Low Cut – 75Hz cut off @ 18dB/Octave (CH1-12)
- Compressor – 2:1 ratio 9dB makeup gain, -8dBu input threshold (max compression, Ch1-8)
- Main Outputs – Balanced Stereo XLR
- Monitors – Stereo ¼” 6.3mm TRS Sockets
- Sub Outputs – 2 x ¼” 6.3mm TRS Sockets
- FX Send – Mono ¼” 6.3mm TRS
- Aux Send – Mono ¼” 6.3mm TRS
- Phones – Mono ¼” 6.3mm TRS
- RCA – Stereo Phono Sockets
- Effects – 16 Reverb and delay effects with enable switch and parameter control.
- Graphic EQ – Master 9 Band Graphic EQ with feedback detect, on/off toggle
- USB Audio – Inputs/Outputs: 2-in/2-out, 24-bit, Sample Rate 48kHz
- AC Power – Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included)
